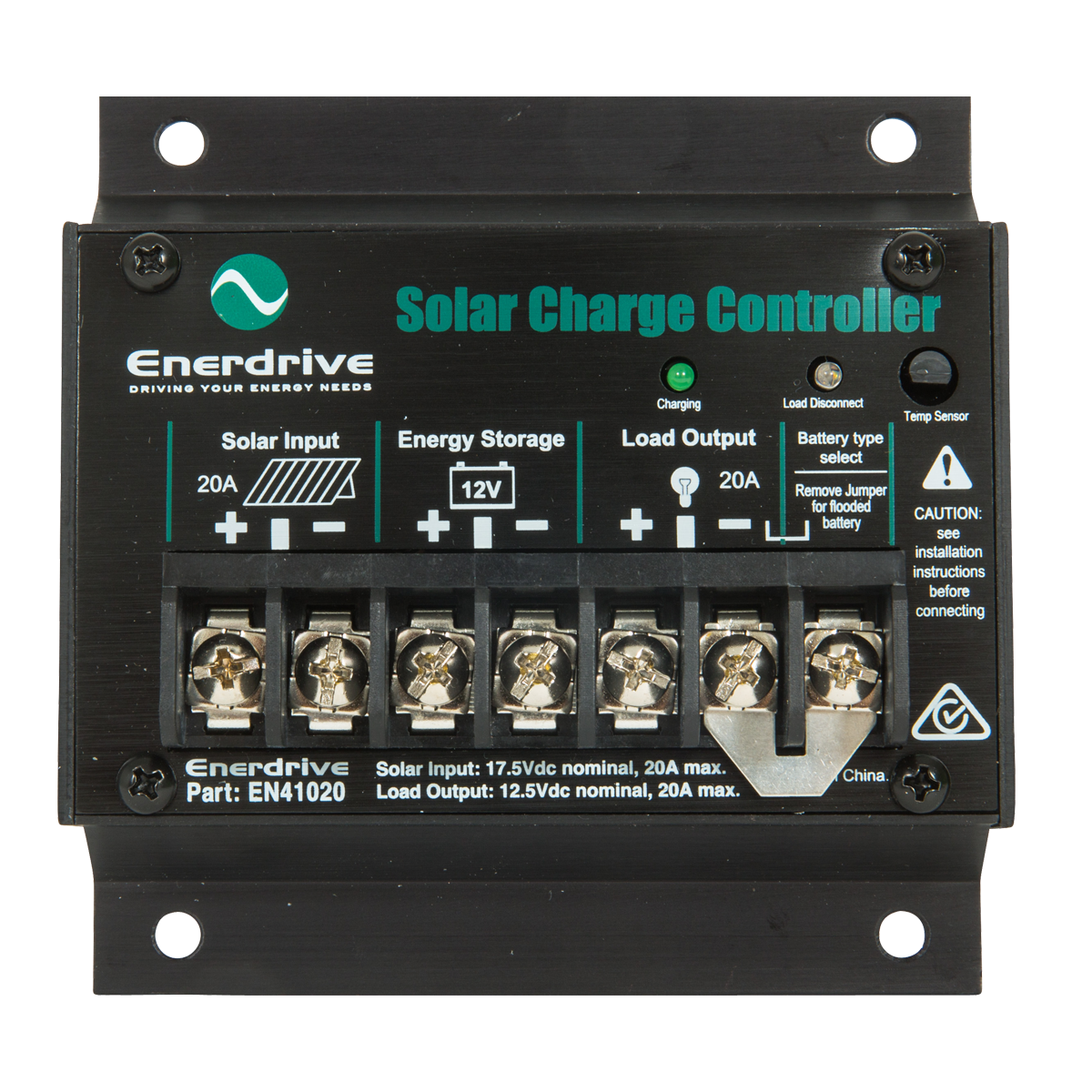

Enerdrive 12V 20A Solar Charge Controller - MPPT Regulator for RV, Boat, Off-Grid Power Systems | Waterproof & Efficient Solar Panel Battery Charger

Solar Charge Controller

PWM Solar Charge Controller. Pulse Width Modulation Charge Controllers improve battery life and optimize system performance and will protect your batteries from over charging. Ideal for Motorhomes, Boats, Camping etc. and very convenient unit.

Features:
- Protects battery from overcharge and discharge
- For 12 Volt solar panels and batteries
- LED status indicator provides quick reference to Charger, Battery and load       status
- Handles up to 350 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintain 12V batteries in a fully charged state

Specifications:
- Battery Voltage: 12V
- Max. panel open circuit voltage: 26V
- Operational Current (no load): <15mA
- Maximum charge current: 20A
- Maximum discharge Current: 20A
- Voltage across terminal (PV to Battery): <0.15V
- Voltage across terminal (Battery to load): <0.10V
- Dimensions: (L)34mm x (W)105mm x (H)105mm
- Weight: 0.3Kg

EN41020

12V20Ah
