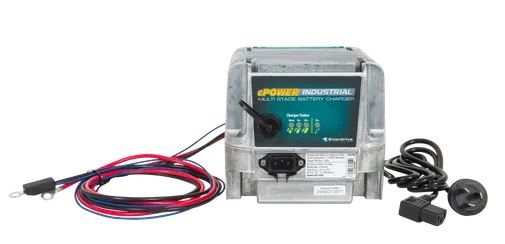

EPOWER INDUSTRIAL CHARGER 36V/20A
36v 20A Industrial Battery Charger
Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick. Applications include: Scissor lifts, Forklifts, Floor Scrubbers, Golf carts, Mobility scooters, Lifting platforms.
Extremely Durable
A fully sealed die-cast aluminum enclosure protects the charger from fluids and other contaminants. The design of the charger enclosure mirrors the internal components, protecting against shock and vibration. (IP67 if using AC input seal).
Programmable Charging
A USB host port allows for charger data logging downloads and charge algorithm uploads using a commonly available USB flash drive. This information can be used by OEMs to improve products, limit battery warranty claims and help technicians with troubleshooting issues.
Specifications:
- Nominal DC output voltage 36 V
- Maximum DC output current 20A
- Maximum DC output power 1985 W
- Battery type Lead acid (Wet / AGM / GEL), Lithium
- Field programmable with up to 25 battery charge profiles
- Reverse polarity Electronic protection with auto-reset
- Short circuit Electronic protection with auto-reset
- Safety UL1564, CSA 107.2, EN 60335-2-29, AZ/NZS60335 (RSM)
- Dimensions: (L)195 (W)180 (H)195mm
- Weight: 5.2kg
Enerdrive 36V
IC650
EPI-3620
